This articles describes in detail about the integrating MachPanel Hostmatic Server Services with MachPanel Control Server
MachPanel all versions
MachPanel Control Server has been installed, if not then follow below KB article:
http://kb.machsol.com/Knowledgebase/Article/50261
MachPanel Remote Server has been installed, if not then follow below KB article:
http://kb.machsol.com/Knowledgebase/Article/50262
All the required back end servers have been installed e.g IIS, DNS, FTP, Mail Servers etc.
Below is the list of services and their providers which Hostmatic Control Server supports:
- Web Services
- IIS 6 Server
- IIS 7.5 Server
- FTP Services
- Microsoft FTP 6 Server
- Microsoft FTP 7/7.5 Server
- Gene6 FTP Server
- Filezilla FTP Server
- Mail Services
- Mail Enable Server
- Merak Mail Server 9.2.1
- Smarter Mail Server 5.x
- Smarter Mail Server 6.x
- Smarter Mail Server 8.x
- DNS Services
- Microsoft DNS Server
- Simple DNS Plus Server
- Database Services
- SQL Server 2000
- SQL Server 2005
- SQL Server 2008
- MYSQL 5.1 Server
- Web Stats
- Protected Folders
1) Open
MachPanel Control Panel Website (You can do it by opening MachPanel
Control Server Configuration Studio and then navigating to Configure > Control Panel Website, and then clicking on the URL in it). Log in with the provider credentials.

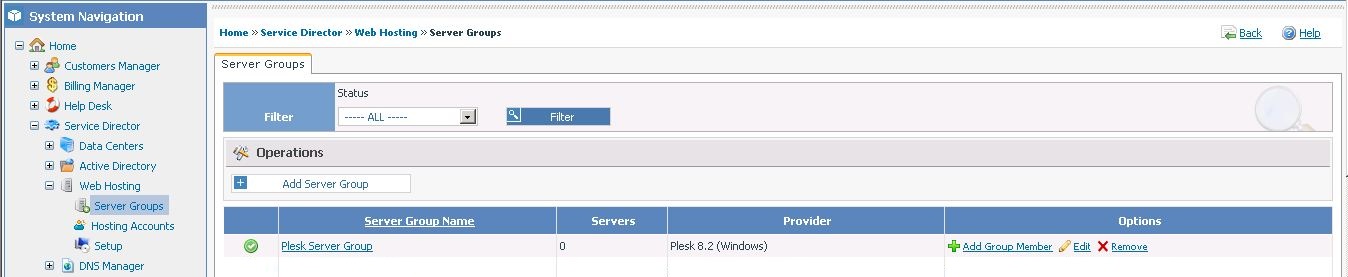

2) Navigate to Home > Service Director > Web Hosting > Server group and then click on Add Server Group.

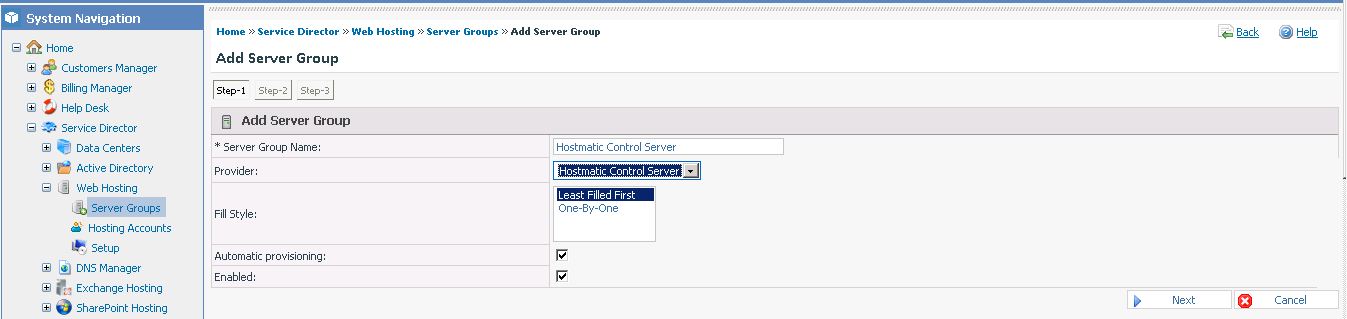

3) Enter Server Group name, select Hostmatic Control Server from the Provider drop down list. Then move to next step.

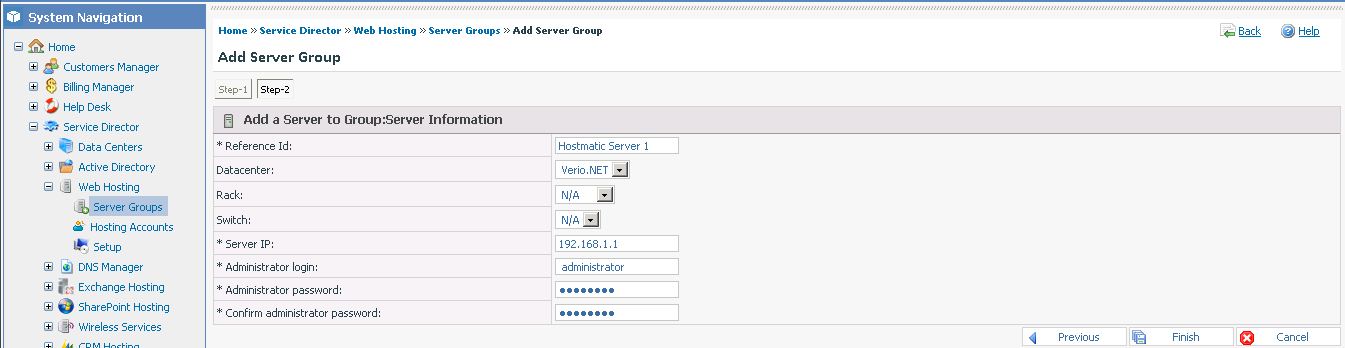

4) Enter the Hostmatic Server Reference ID, IP, local administrator credentials and click Finish.

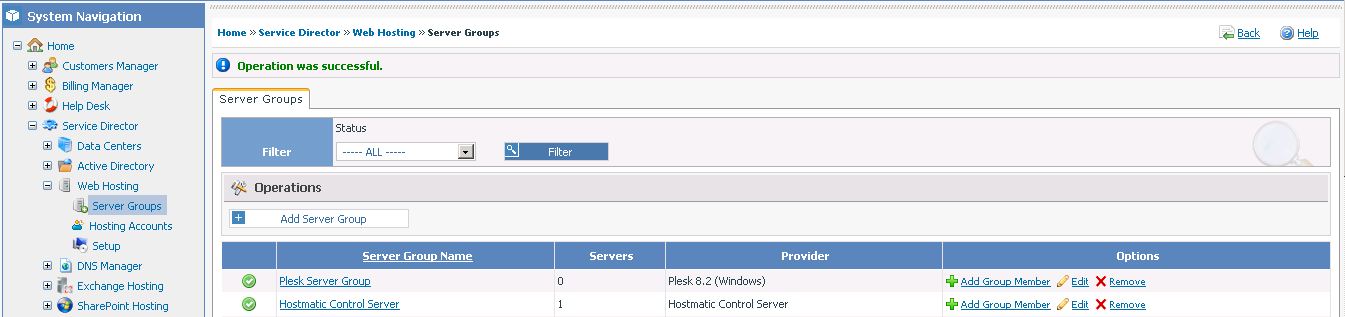

5) At this point you have successfully added the Hostmatic Control Server in MachPanel. Now you need to add services in the recently added server. So click on the recently added Hostmatic Control Server group.

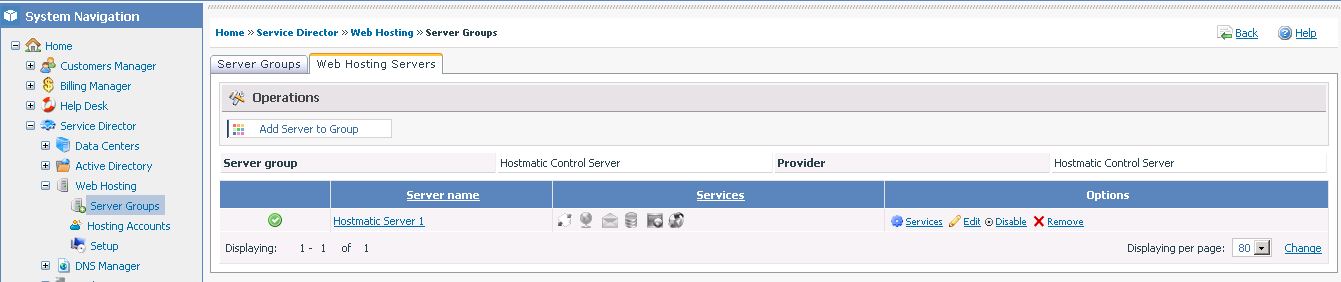

6) You will see the list of Hostmatic Server being added in this Server Group. To add Hostmatic Services in the Hostmatic Server click Services in the options menu against the desired server.

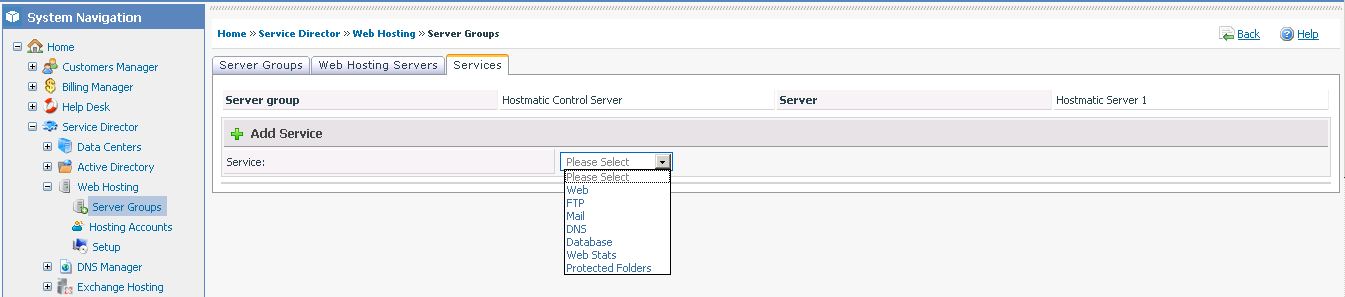

7) From the Service drop down menu, select the Service you want to add.
After selecting the service, you will be taken to their respective pages. Fill the required information for the services and save. Add multiple services as per your requirements.

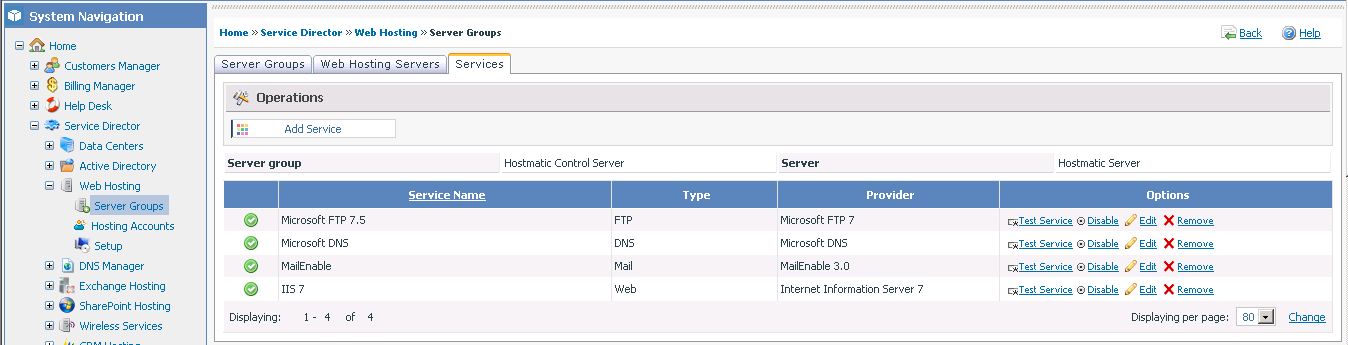

8) Below is a snapshot of Web, Mail, DNS and FTP services added in the above Hostmatic Server.

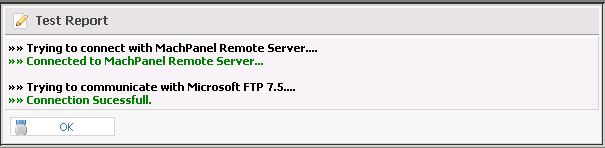

9) Hit Test Service for each service and if you get below snapshot then integration of that service is successful
